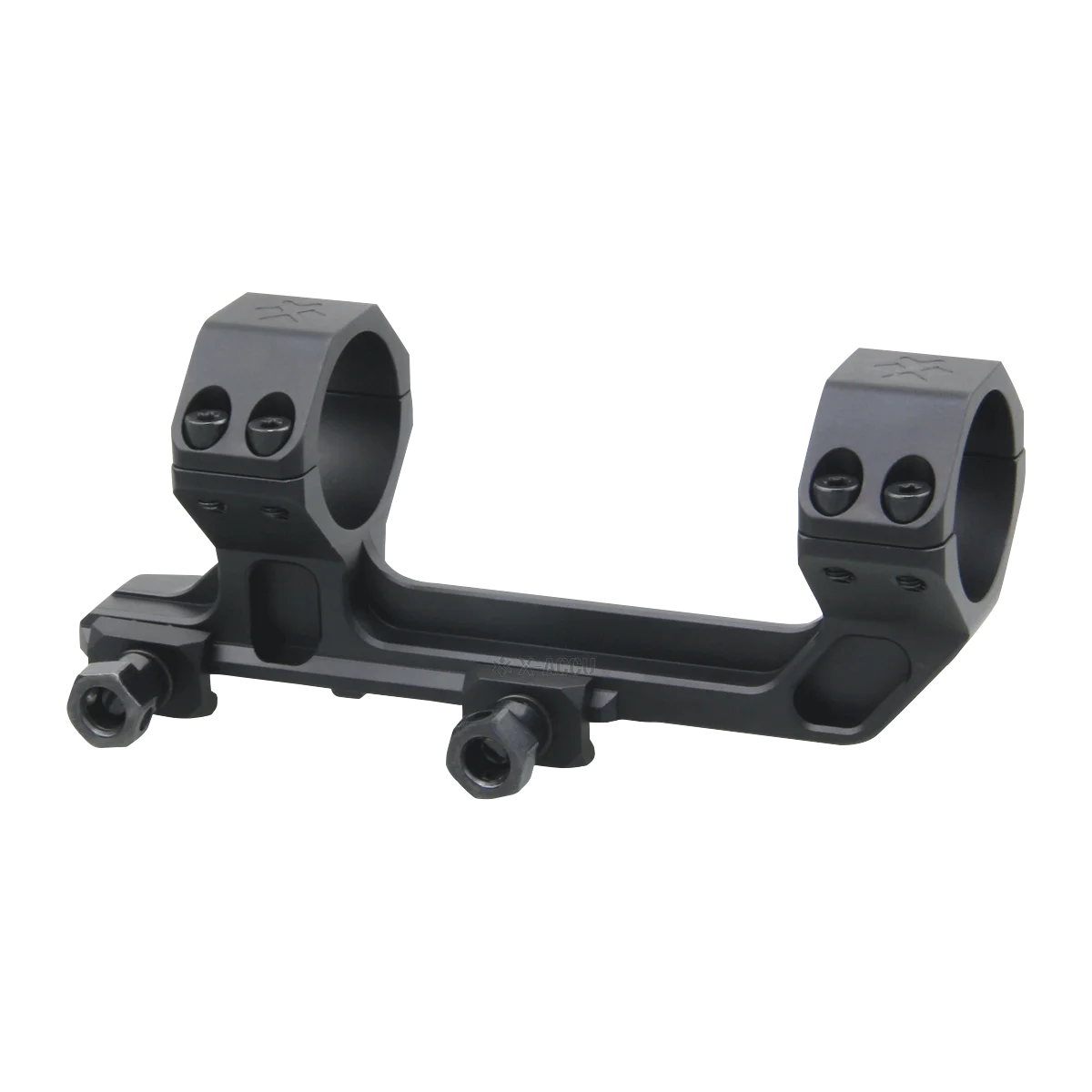

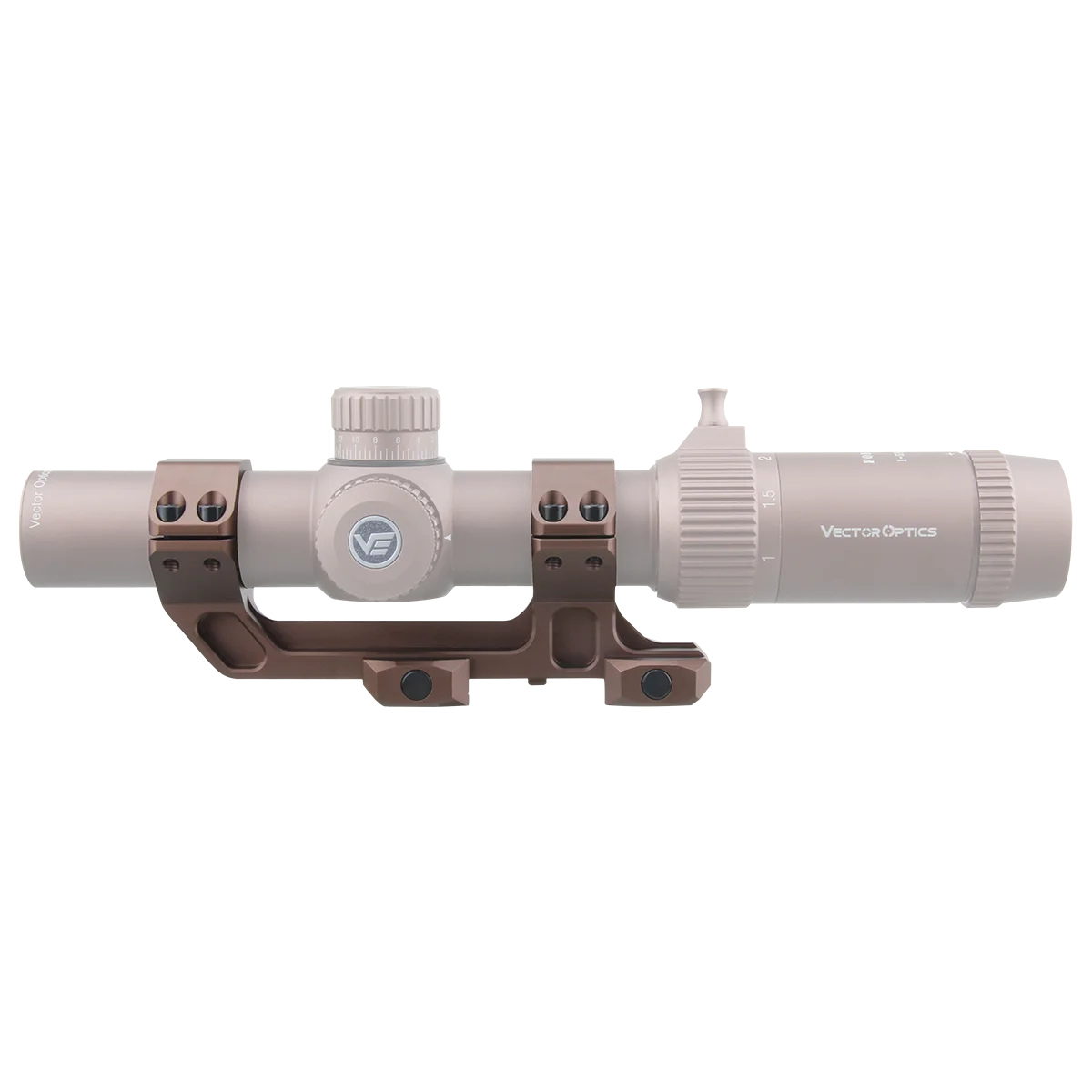

Victoptics 30mm 0/20 MOA One-Piece Extended Picatinny Coyote FDE
Victoptics 30mm 0/20 MOA One-Piece Extended Picatinny Coyote FDE
Impossibile caricare la disponibilità di ritiro
Feature

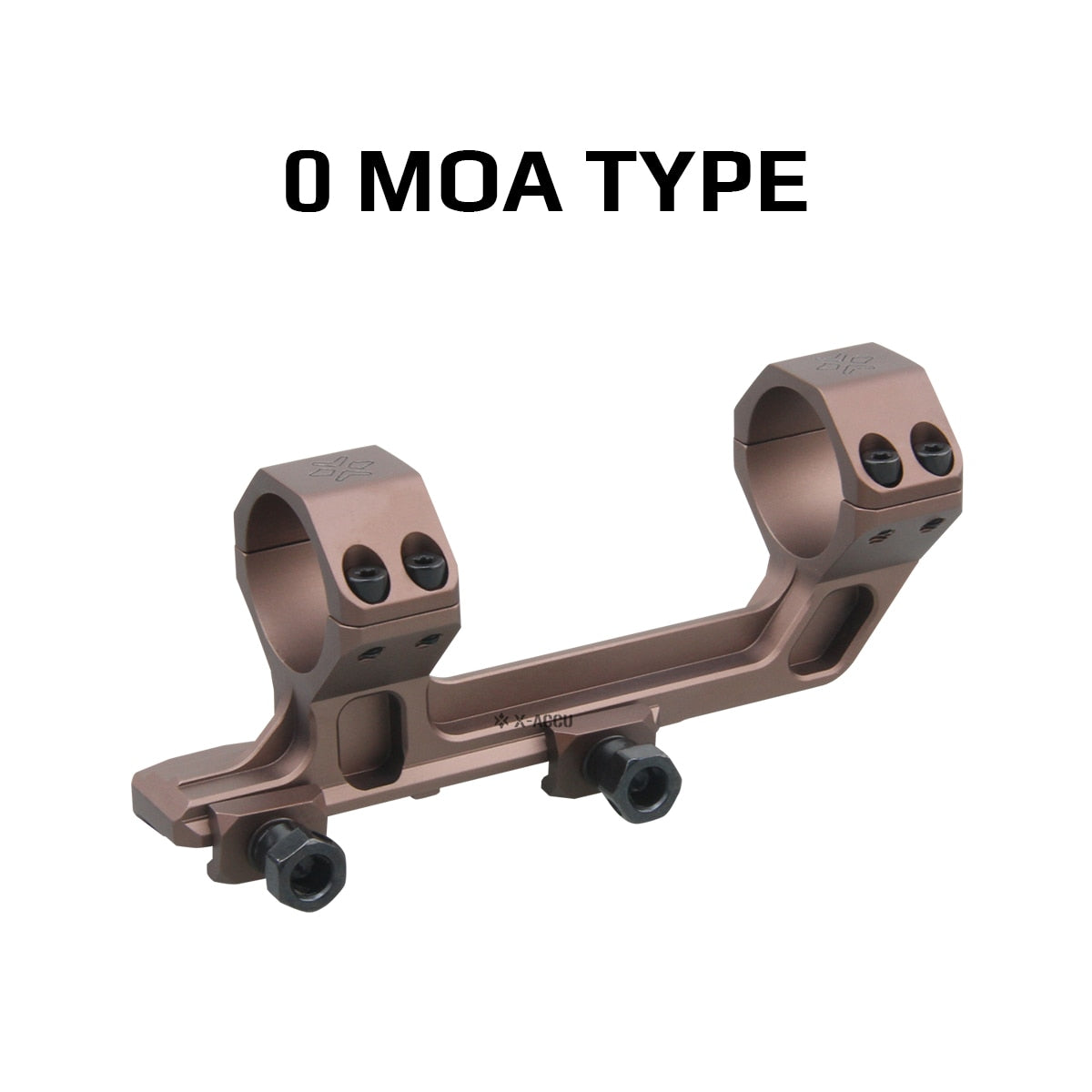

0 MOA Type, AR Platform Tactical Picatinny Mount, Four Screws Per Ring
38mm 1.5" Bottom to Ring Center, Extremely Accurate w/ Full CNC Machined
Light Weight, 21mm Picatinny Mount with Two Crossing Bolts & Anti-Retreat Bar

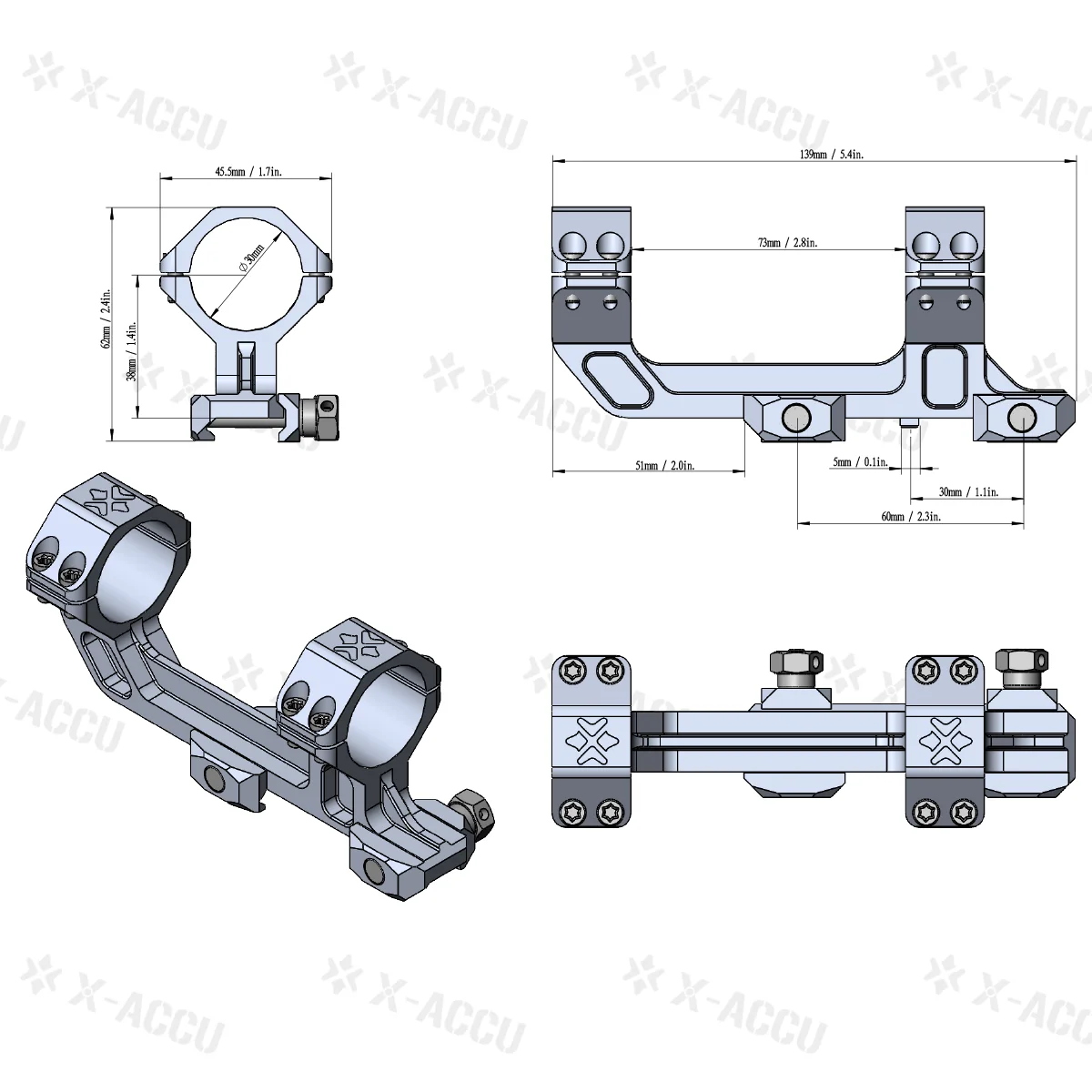

Specifications
-
Ring Diameter: 30mm
-
Overall Length: 139m / 5.5"
-
Overall Height: 62mm / 2.4"
-
Mount Length: 120mm / 4.7"
-
Ring Width: 46mm / 1.8"
-
Central Height: 38mm / 1.5", bottom to center
-
Ring Length: 21mm / 0.8"
-
Gap Length: 73mm / 2.9"
-
Material: 6061-T6 aluminum alloy
-
Weight: 155g / 5.5oz
-
Mount: 1913 Picatinny
-
Finish: Coyote FDE matte
-
Screws per ring: 4
-
High-durability aluminum alloy in matte finish
-
Do not use over 18 inch / pounds of torque on the scope rings" screws
-
Suggest 25 inch / pounds (Can Accept Max 45 Inch / Pounds) torque force for big nuts when installing the mount on the picatinny rail
-
Designed for hard and rigorous use
-
With hex key and retail package, hex key can be used to fasten the clamp nuts
